The complete integration package for the ELATEC TWN4 MultiTech Nano LEGIC 63 M

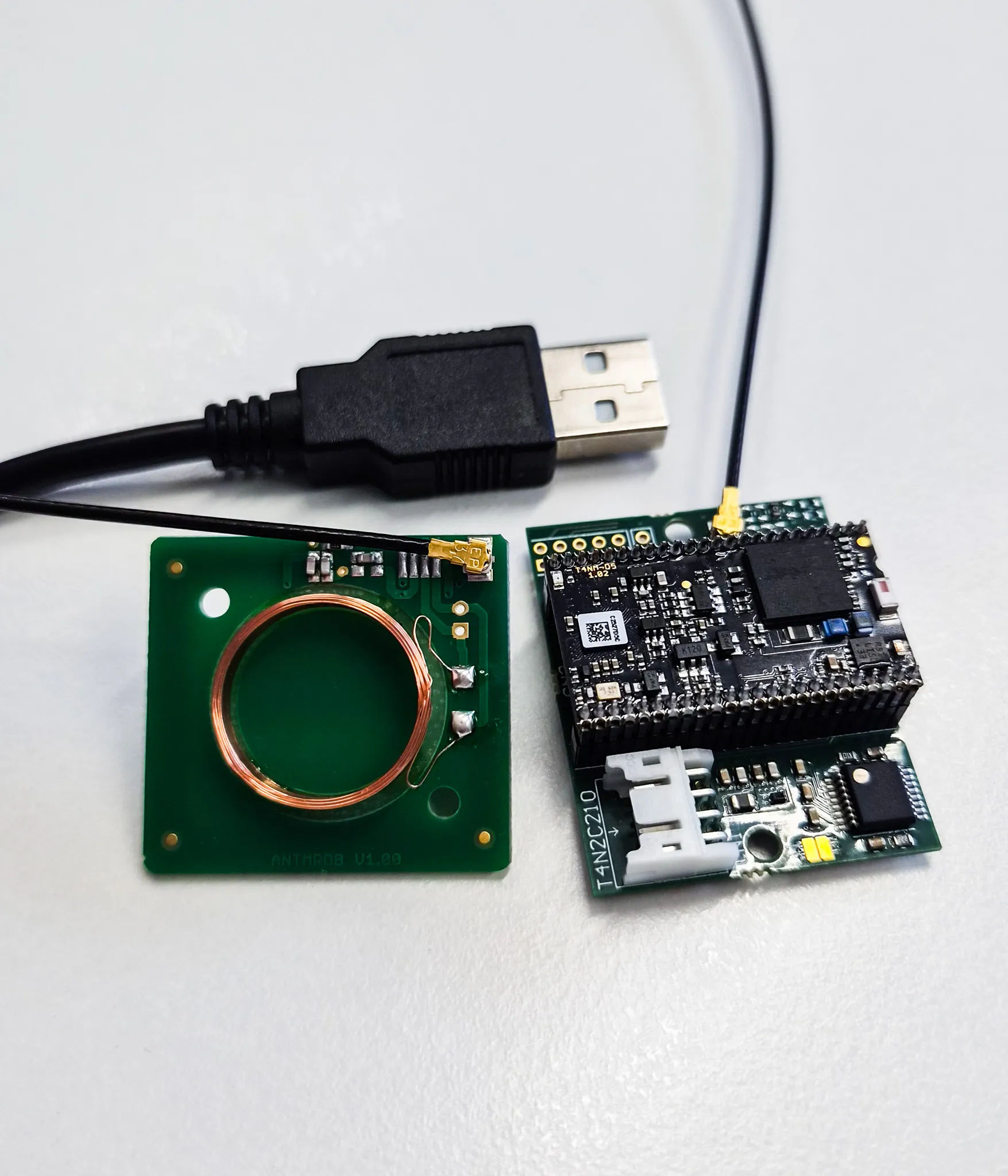

nano2core combines the ELATEC TWN4 MultiTech Nano LEGIC 63 M, the ELATEC N2C adapter board, an external antenna, and the matching connection cables into a coordinated package for OEM and embedded applications.
We use your email address to provide the data sheet and to track your interaction with our content. Learn more in our privacy policy.
Direct connection to the host system.
The Nano module can be easily connected via USB using the N2C adapter board and the appropriate connection cable.
The integration base for the Nano module.
The pin-compatible adapter board houses the TWN4 MultiTech Nano LEGIC 63 M and provides the necessary interfaces for integration and testing.
Flexible external antenna connection.

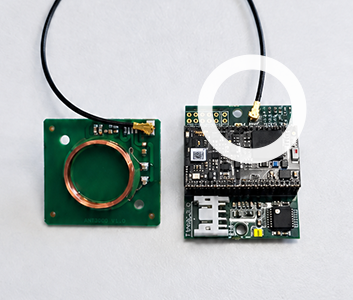

The UMCC interface allows for the connection of an external antenna tailored to your specific installation requirements.
The RFID module in the nano2core package.
The compact ELATEC module supports LF, HF/NFC, and BLE, as well as more than 60 RFID technologies, depending on firmware and configuration.
Tailored to your housing and installation requirements.
The external antenna allows the position of the read point to be planned independently of the reader module.

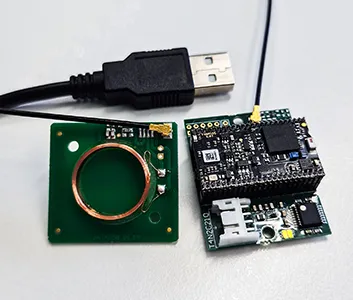

For space-constrained OEM and embedded applications.
The reader module, adapter board, and external antenna can be flexibly integrated into various device and housing concepts.
The images are for illustrative purposes only.
In the nano2core data package, you will find product photos, datasheets, technical drawings, as well as documentation on antennas, connection cables, and further integration details.
*Supported RFID technologies depend on firmware, options, and the connected antenna/hardware configuration.

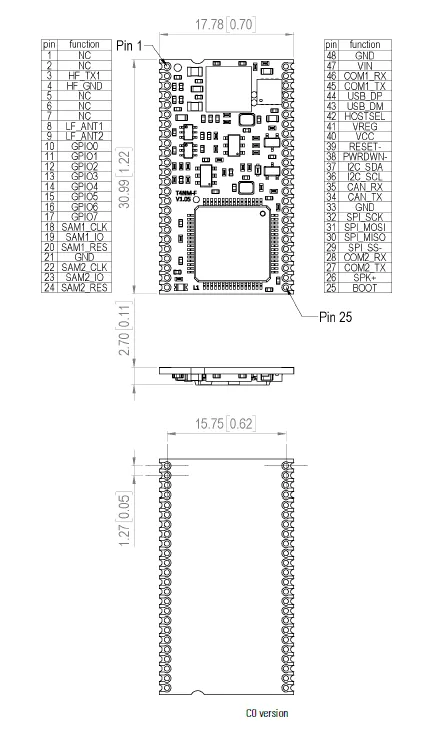

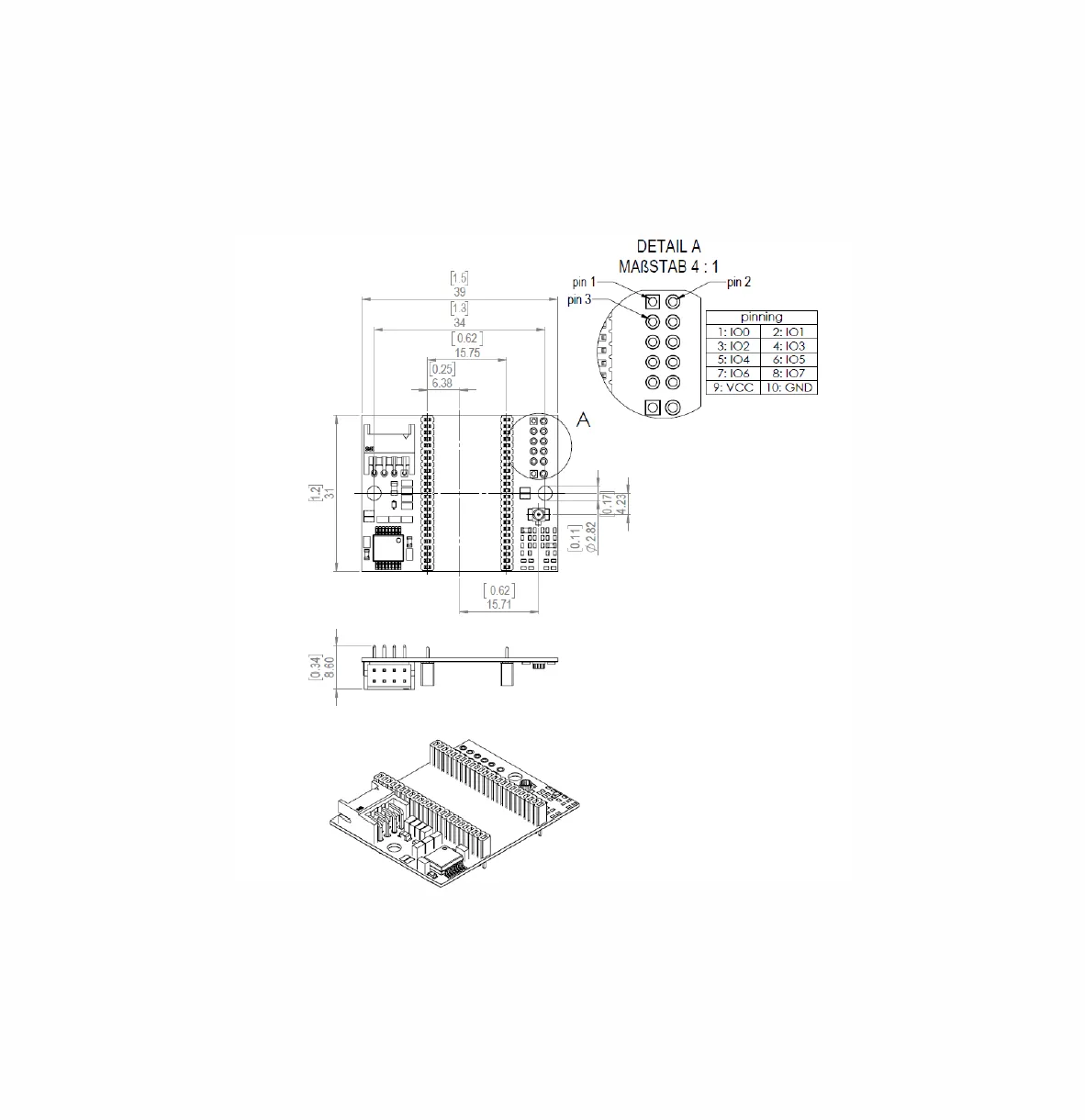

Technical documentation for the N2C adapter board, the TWN4 MultiTech Nano LEGIC 63 M, as well as for antennas and connection components, is available for mechanical and electrical evaluation.
Download data package* The complete technical documentation is part of the nano2core data package.
The combination of the nano module, N2C adapter board, external antenna, and host connection creates a compact integration base for a wide variety of device and application concepts.
All relevant documents for technical evaluation, integration, and project planning in one place.
Included in the data package:
We use your email address to provide the data sheet and to track your interaction with our content. Learn more in our privacy policy.
ELATEC components as a coordinated integration package.
nano2core combines the ELATEC TWN4 MultiTech Nano LEGIC 63 M with the ELATEC N2C adapter board, external antenna, and matching connection cables into a complete integration package.
Available exclusively through evolutionID.
nano2core package or direct Nano integration?
nano2core is an integration package available through evolutionID, consisting of the ELATEC TWN4 MultiTech Nano LEGIC 63 M, the ELATEC N2C adapter board, an external antenna, and the appropriate connection cables.
The package includes the ELATEC TWN4 MultiTech Nano LEGIC 63 M. The N2C adapter board is designed for the C1 hardware configuration of the module.
The reader module supports LF, HF/NFC, and BLE, as well as more than 60 RFID technologies, depending on the firmware and configuration.
Yes. The N2C adapter board features a UMCC interface for external antennas, allowing the reader module and antenna to be positioned separately.
Typical areas of application include kiosk systems, card printers, HMIs, industrial track-and-trace applications, prototyping, as well as OEM and embedded integrations.
The data package contains product information and technical documentation for the reader module, N2C adapter board, dimensions, pin assignments, antennas, connection cables, and further integration details.
